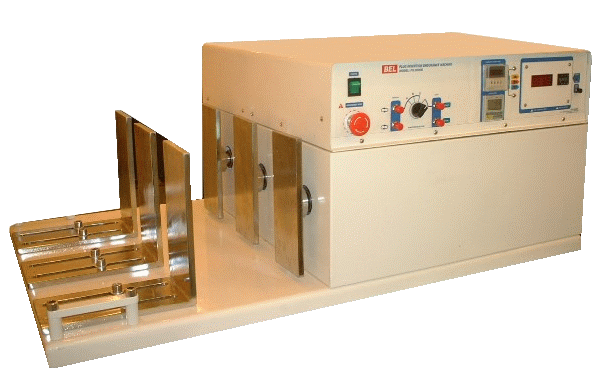

In order to ensure that the quality of plug and socket is in accordance to meet the EN60335 standard, we provides several inspection test machine to help client to minimize the risk of getting defective and control the quality of production. Plug Socket Insertion Endurance Machine was designed for determine the life test of plug and socket by moving backwards and forwards as simulate actual use. There are total three independent working groups to increase test efficiency. The information resulting from this quality test can be used to determine the exact source of imperfection. This model has been use by several famous laboratories around the world.

Power Input: 220/240V AC  50Hz
Distention: 150mm
Speed: 140mm/s~160mm/s
Connect Power On Time Range: 3~999sec. (ADJ.)
Disconnect Power On Time Range: 3~999sec. (ADJ.)
Counter: 0~99999 (ADJ.)
MODEL: PIL-3000D   (Three Working Groups)

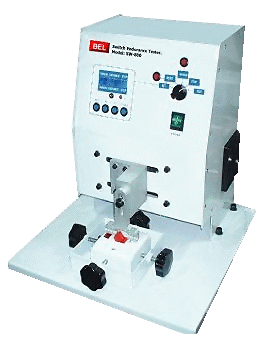

Providing various test equipment for reducing the product operation failure and maintaining the quality are our main objectives. Switch Endurance Tester is equipment for testing the durability of a switch under a simulation. It is suitable for test Rocker Switch, Wall Switch, Push Button Switch, Slide Switch, Micro Switch, Limit Switch, Vibration Switch...etc. It is also useful when testing the mobile on-off slide endurance test and keyboard friction test. Multi-functions of the Switch Endurance Tester are absolutely value added and able to connect with personal computer for viewing the test reports and data. Those valuable reports and data will absolutely benefit for quality control and product enhancement. Switch Endurance Tester has been widely adopted by many international well know test laboratories and enterprises around the world.

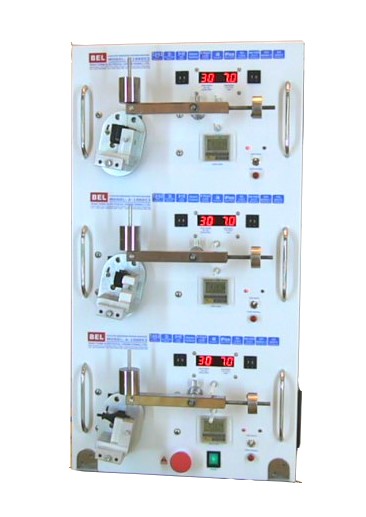

Plug Pin Abrasion Testing Machine was specially designed for determine the abrasion resistance of insulating sleeves of plug pin by moving backwards and forwards. It is suitable for test in BS1363/ AN/NZS3112/ IEC60884-1 / EN50075 Standard. It can test three test samples in same time. This model has been used in many famous laboratory.
